Access Control

Very much embryonic and alpha project to play with commands which would be required to implement a electronic door lock system.

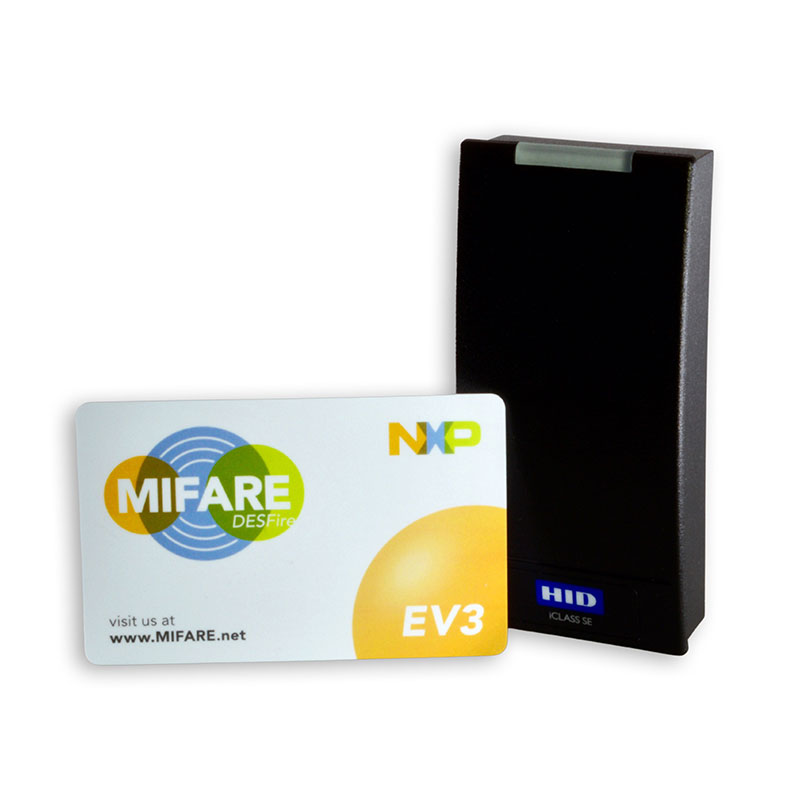

Key cards with a serial number are issued and each door has a Wiegand or rfid style reader, optionally requiring a PIN as well as card to unlock. Maybe bluetooth instead of PIN?

Also, by abstracting the keypad / reader and lock from the physical device, it should enable MQTT enabled devices to be included. If they are to be trusted….. So PKI is probably needed to maintain trust and security. (Trust but Verify!)

https://dbdiagram.io/d

https://www.usmartcards.co.uk/Access-control

Flow

person present card to reader

card id read and submitted to control system with reader (door) id

card id used to get user and door information from db

-> > select userID, cardID from keycards where cardNumber = 1234;
+--------+--------+
| userID | cardID |
+--------+--------+
|      3 |      1 |
+--------+--------+

note cardID is an index to the table, use this as it allows a card ID to be changed if a card is lost

select door information from readerID to decide if PIN is needed.

 select * from doors where readerID = 7678;
+--------+----------+-----------+---------+
| doorId | readerId | doorDesc  | pinReqd |
+--------+----------+-----------+---------+
|      3 |     7678 | Back door |       1 |
+--------+----------+-----------+---------+

Get access level for user, I don't really like this, I need a way to record info for many users for many doors whilst remaining workable. My idea to store JSON in the SQL was a way to combine a NoSQL style db with MySQL. Seemed cool at the time…..

 SELECT accesslevel FROM access WHERE userID = 3;
+------------------------------------------------------------+
| accesslevel                                                |
+------------------------------------------------------------+
| {
        1 : "denied",
        2 : "denied",
        3 : "denied"
} |
+------------------------------------------------------------+

so card number 1234 is cardID 1 and userID 3. presented to reader 7678 which is doorID 3 back door, as it is external it requires a PIN as well userID 3 has access level to doorID “3” of “denied”.

DB structure

show tables;
+-------------------------+
| Tables_in_accesscontrol |
+-------------------------+
| access                  |
| doors                   |
| keycards                |
| users                   |
+-------------------------+
23 rows in set (0.000 sec)

> show create table access \G;
*************************** 1. row ***************************
       Table: access
Create Table: CREATE TABLE `access` (
  `accessID` int(11) NOT NULL,
  `userID` int(11) NOT NULL,
  `accesslevel` varchar(1024) NOT NULL,
  PRIMARY KEY (`accessID`),
  UNIQUE KEY `userID` (`userID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_general_ci
1 row in set (0.001 sec)

> describe access;
+-------------+---------------+------+-----+---------+-------+
| Field       | Type          | Null | Key | Default | Extra |
+-------------+---------------+------+-----+---------+-------+
| accessID    | int(11)       | NO   | PRI | NULL    |       |
| userID      | int(11)       | NO   | UNI | NULL    |       |
| accesslevel | varchar(1024) | NO   |     | NULL    |       |
+-------------+---------------+------+-----+---------+-------+

show create table doors \G;
*************************** 1. row ***************************
       Table: doors
Create Table: CREATE TABLE `doors` (
  `doorID` int(11) NOT NULL AUTO_INCREMENT,
  `readerID` int(11) NOT NULL,
  `doorDesc` varchar(255) NOT NULL,
  `pinReqd` tinyint(1) NOT NULL,
  PRIMARY KEY (`doorID`),
  UNIQUE KEY `doorDesc` (`doorDesc`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8 COLLATE=utf8_general_ci
1 row in set (0.000 sec)

> describe doors;
+----------+--------------+------+-----+---------+----------------+
| Field    | Type         | Null | Key | Default | Extra          |
+----------+--------------+------+-----+---------+----------------+
| doorID   | int(11)      | NO   | PRI | NULL    | auto_increment |
| readerID | int(11)      | NO   |     | NULL    |                |
| doorDesc | varchar(255) | NO   | UNI | NULL    |                |
| pinReqd  | tinyint(1)   | NO   |     | NULL    |                |
+----------+--------------+------+-----+---------+----------------+

show create table keycards \G;
*************************** 1. row ***************************
       Table: keycards
Create Table: CREATE TABLE `keycards` (
  `cardID` int(11) NOT NULL,
  `cardNumber` varchar(256) NOT NULL,
  `Created` timestamp NOT NULL DEFAULT current_timestamp() ON UPDATE current_timestamp(),
  `Deleted` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
  `userID` int(11) NOT NULL,
  PRIMARY KEY (`cardID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_general_ci
1 row in set (0.000 sec)


> describe keycards;
+------------+--------------+------+-----+---------------------+-------------------------------+
| Field      | Type         | Null | Key | Default             | Extra                         |
+------------+--------------+------+-----+---------------------+-------------------------------+
| cardID     | int(11)      | NO   | PRI | NULL                |                               |
| cardNumber | varchar(256) | NO   |     | NULL                |                               |
| Created    | timestamp    | NO   |     | current_timestamp() | on update current_timestamp() |
| Deleted    | timestamp    | NO   |     | 0000-00-00 00:00:00 |                               |
| userID     | int(11)      | NO   |     | NULL                |                               |
+------------+--------------+------+-----+---------------------+-------------------------------+

show create table users \G;
*************************** 1. row ***************************
       Table: users
Create Table: CREATE TABLE `users` (
  `userID` int(11) NOT NULL,
  `username` varchar(256) NOT NULL,
  `firstname` varchar(256) NOT NULL,
  `surname` varchar(256) NOT NULL,
  `pin` int(11) NOT NULL,
  `created` timestamp NOT NULL DEFAULT current_timestamp() ON UPDATE current_timestamp(),
  `deleted` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
  PRIMARY KEY (`userID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_general_ci
1 row in set (0.001 sec)


 describe users;
+-----------+--------------+------+-----+---------------------+-------------------------------+
| Field     | Type         | Null | Key | Default             | Extra                         |
+-----------+--------------+------+-----+---------------------+-------------------------------+
| userID    | int(11)      | NO   | PRI | NULL                |                               |
| username  | varchar(256) | NO   |     | NULL                |                               |
| firstname | varchar(256) | NO   |     | NULL                |                               |
| surname   | varchar(256) | NO   |     | NULL                |                               |
| pin       | int(11)      | NO   |     | NULL                |                               |
| created   | timestamp    | NO   |     | current_timestamp() | on update current_timestamp() |
| deleted   | timestamp    | NO   |     | 0000-00-00 00:00:00 |                               |
+-----------+--------------+------+-----+---------------------+-------------------------------+

SQL examples

rb-projects-access:sqlexamples
