Cisco 2960X series Gigabit ethernet switches

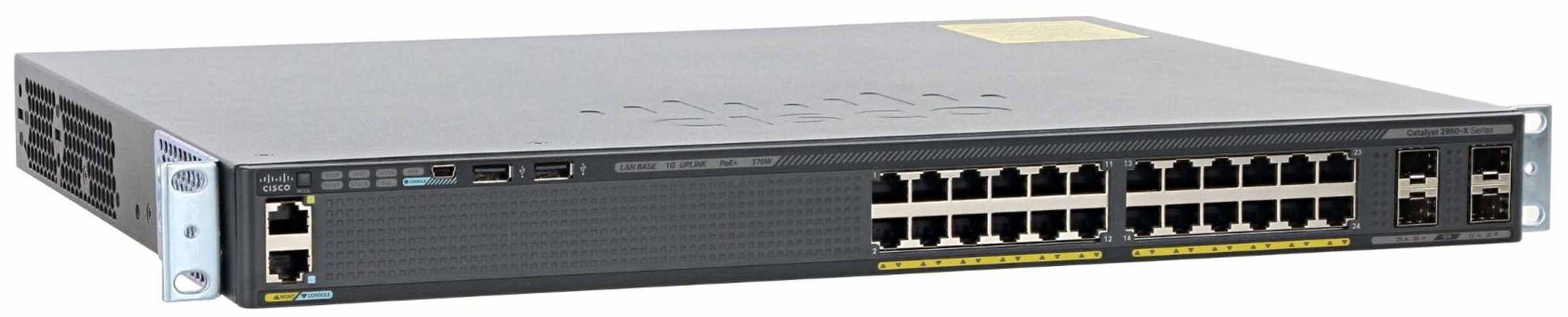

Cisco 2960-X switch

New (to me) switch from eBay, cost all of £5.00 inc postage… Gigabit on all ports and POE but just a bit different to the previous 3750's I had. In addition to the 24 (or 48) copper RJ-45, there are 4x SFP and an additional fastEthernet port intended for out of band management, no POE unsurprisingly. Also there is a Mini USB for serial as well as the RJ-45 serial console. This presents as /dev/ttyACM0.

SFP

2960-core#sh interfaces transceiver
If device is externally calibrated, only calibrated values are printed.
++ : high alarm, +  : high warning, -  : low warning, -- : low alarm.
NA or N/A: not applicable, Tx: transmit, Rx: receive.
mA: milliamperes, dBm: decibels (milliwatts).

                                 Optical   Optical
           Temperature  Voltage  Tx Power  Rx Power
Port       (Celsius)    (Volts)  (dBm)     (dBm)
---------  -----------  -------  --------  --------
Gi1/0/49     49.5       3.36      -5.1      -3.0
Gi1/0/50     52.5       3.34      -5.3      -3.9

#sh interfaces transceiver properties
...edited...
Name : Gi1/0/48
Administrative Speed: auto
Administrative Duplex: auto
Administrative Auto-MDIX: on
Administrative Power Inline: enable  <-------- Copper RJ-45
Operational Speed: auto
Operational Duplex: auto
Operational Auto-MDIX: on
Media Type: 10/100/1000BaseTX        <--------

Name : Gi1/0/49
Administrative Speed: auto
Administrative Duplex: auto
Administrative Auto-MDIX: on
Administrative Power Inline: N/A     <-------- Optical SFP
Operational Speed: 1000
Operational Duplex: full
Operational Auto-MDIX: on
Media Type: 1000BaseSX SFP           <--------
#sh interfaces transceiver detail
...edited...
           Optical            High Alarm  High Warn  Low Warn   Low Alarm
           Receive Power      Threshold   Threshold  Threshold  Threshold
Port       (dBm)              (dBm)       (dBm)      (dBm)      (dBm)
-------    -----------------  ----------  ---------  ---------  ---------
Gi1/0/49    -3.0                 0.0        -0.5       -23.5      -24.1
Gi1/0/50    -3.9                 0.0        -0.5       -23.5      -24.1

Port Channel (Etherchannel)

VTP
