Cisco 2801 with gsm and gps modules
Using gsm/gps module as a fpga:- https://hackaday.io/project/168542-cisco-hwic-3g-cdma-as-a-cheap-fpga-board/log/171121-reverse-engineering-the-cisco-hwic-3g-cdma
backup cellular routing

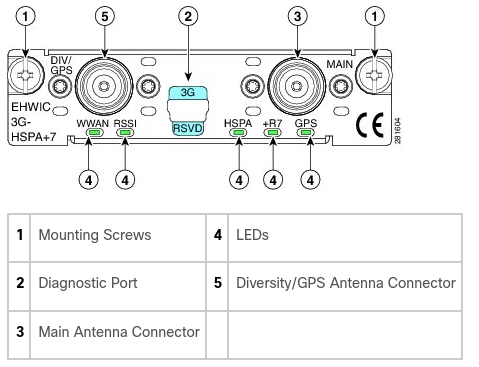

http://wiki.ciscolinux.co.uk/index.php?title=Cisco_1941_with_EHWIC-3G-HSPA%2B7_card_configuration
Create APN profile
This is for UK Orange / EE:-
Router#$0/0 gsm profile create 3 everywhere chap eesecure secure ipv4 Profile 3 will be created with the following values: PDP type = IPv4 APN = everywhere Authentication = CHAP Username = eesecure Password = secure Are you sure? [confirm] Profile 3 written to modem Router#
Router#show cellular 0/0/0 network Current Service Status = Emergency Only, Service Error = None Current Service = Invalid Packet Service = None Packet Session Status = Inactive Current Roaming Status = Home Network Selection Mode = Automatic Country = GBR, Network = O2 - UK Mobile Country Code (MCC) = 234 Mobile Network Code (MNC) = 10 Location Area Code (LAC) = 21565 Routing Area Code (RAC) = 146 Cell ID = 26948 Primary Scrambling Code = 0 PLMN Selection = Automatic Router# Router#sh cellular 0/0/0 gps detail GPS Info ------------- GPS Status: GPS acquiring GPS Mode Configured: standalone Latitude: 0 Deg 0 Min 0 Sec North Longitude: 0 Deg 0 Min 0 Sec East Timestamp (GMT): Sun Jan 6 00:00:00 1980 Fix type index: 0 HEPE: 0 cm, GPS Mode Used: not configured/unknown, Positioning Source index invalid: 0 Uncertainty Info: Angle: 0 deg, A: 50 cm, Position: 50 cm, Vertical: 50 cm Satellite Info ---------------- Router#
Need to fix
No physical hardware support for line 8 modem InOut ^ % Invalid input detected at '^' marker. no exec ^ % Invalid input detected at '^' marker. transport input all ^ % Invalid input detected at '^' marker. transport output all ^ % Invalid input detected at '^' marker. stopbits 1 ^ % Invalid input detected at '^' marker. speed 4800 ^ % Invalid input detected at '^' marker.
